[Patented]

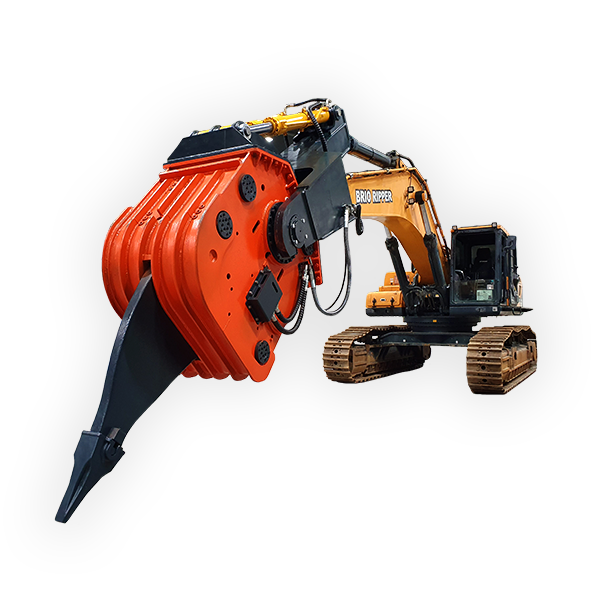

MAXBRIO BRMC
World Patented Product : Only Vibro Ripper that rips and vibrates at the same time
Applicable for 52 ton class excavator
- MODELS
- BRMC
- EXCAVATOR WEIGHTS
- ≤ 52 Ton

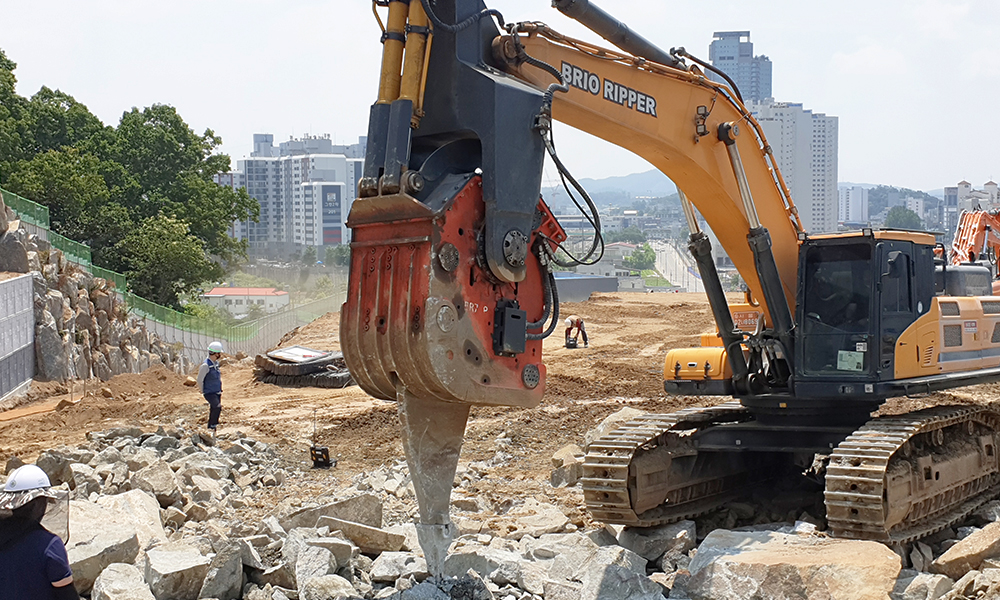

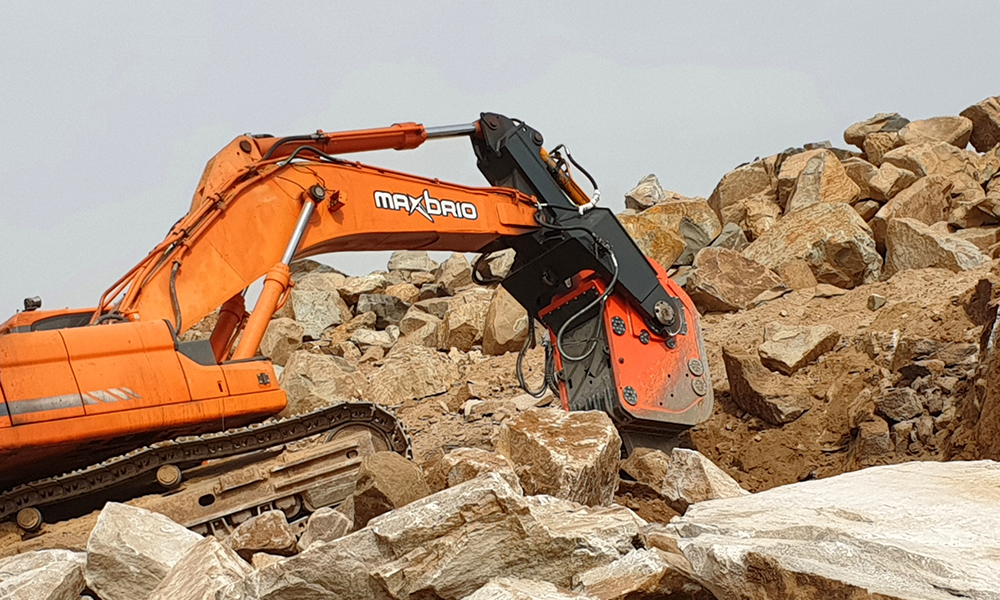

Applications
Demolitions
Quarries
Mining
Tunnel
Downtown areas
Excavation
Landscaping
Forestry
Specifications
BRMC RIPPER | ||
|---|---|---|
| Excavator class | Ton | 52 |
Frequency | rpm | 1700 |
| Hz | 28.3 | |
| Setting Oil Pressure | kg/cm2 | 250 |
Required Oil Flow | 1/min | 320~350 |
(A) Height | mm | 1900 |
in | 74.8 | |
(B) Length | mm | 6020 |
| in | 237 | |
(C) Width | mm | 1462 |
| in | 57.5 | |
(D) Tilting | degree | 86 |
Weight | kg | 63970 |
lb | 140734 | |
The above specifications are subject to change without prior notice for quality enhancement.
