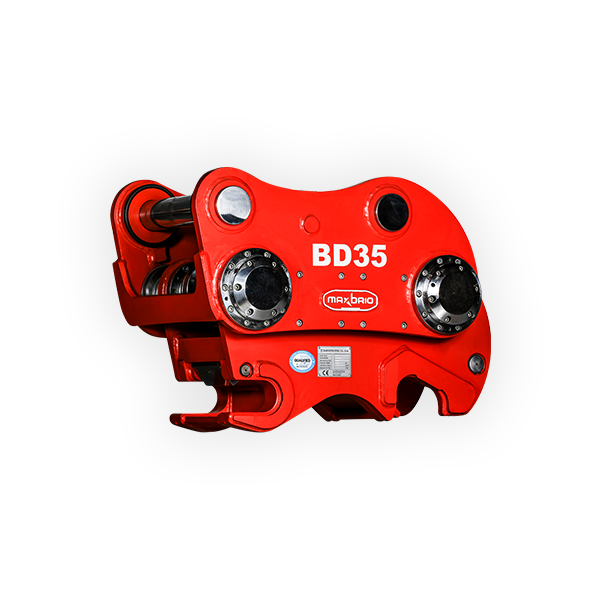

대표 이미지
ANTI-SHOCK
MODELS
BD15, BD25, BD35, BD45, BD55
EXCAVATOR WEIGHTS
≥ 14 ≤ 48 Ton
Request a quote
Features / Advantages
  • Absorbing 97% recoil shock when using with the breaker

  • Specially designed to protect the excavator and operator

  • Simplified Double-Safety device with secured stability

  • Highly effective for protecting the excavator, extends lifetime of excavator boom, arm, and cylinder
  • Product performance certified by the Korean government Korea Institute of Machinery and Material (KIMM) / Korea Construction Equipment Technology Institute (KOCETI)
  • Applicable for all kinds of attachment
Applications

  • Demolitions

  • Roadworks

  • Quarries

  • Mining

  • Tunnel

  • Trenching

  • Downtown areas

  • Excavation

  • Landscaping

  • Forestry

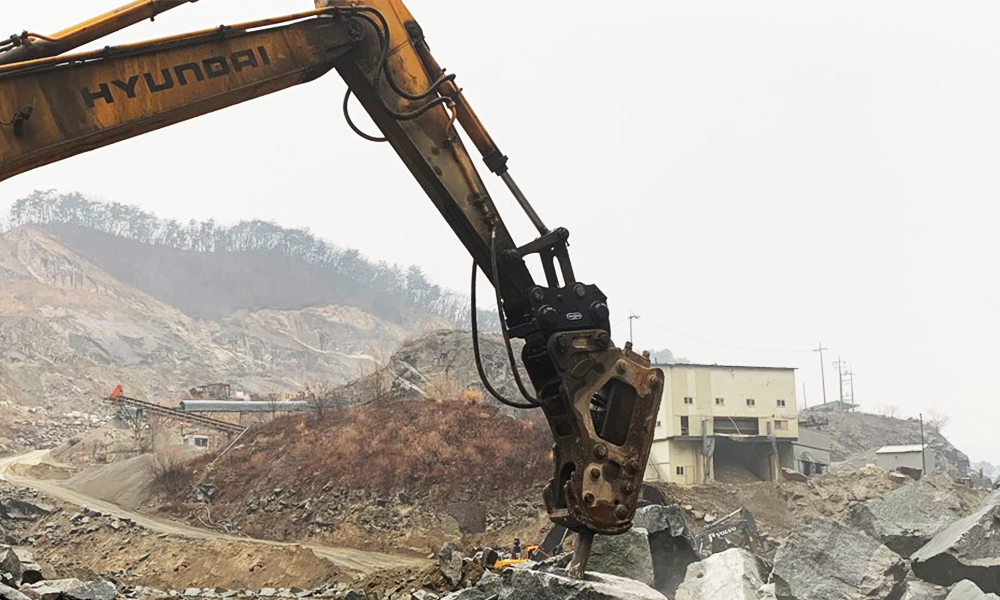

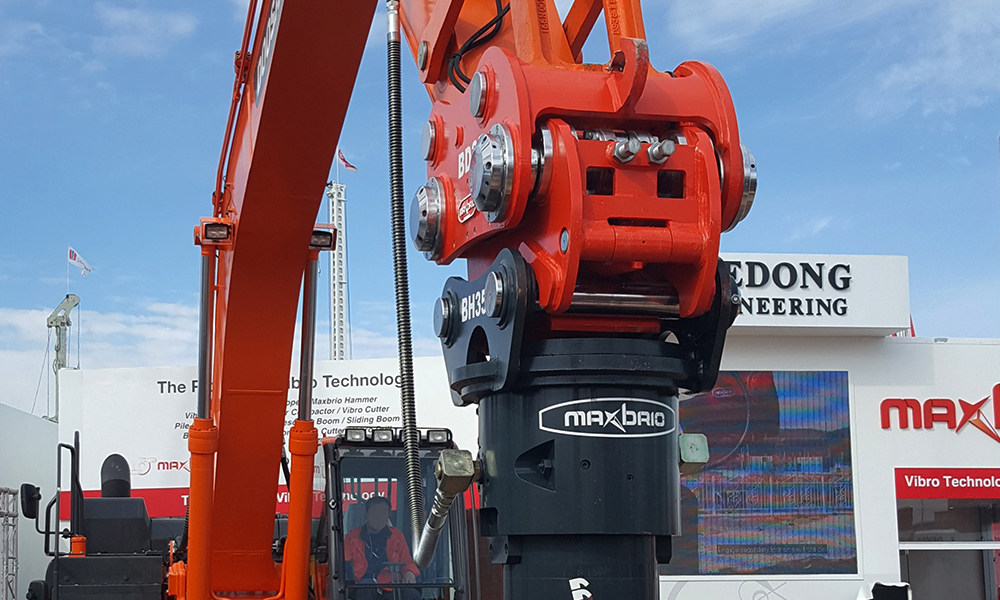

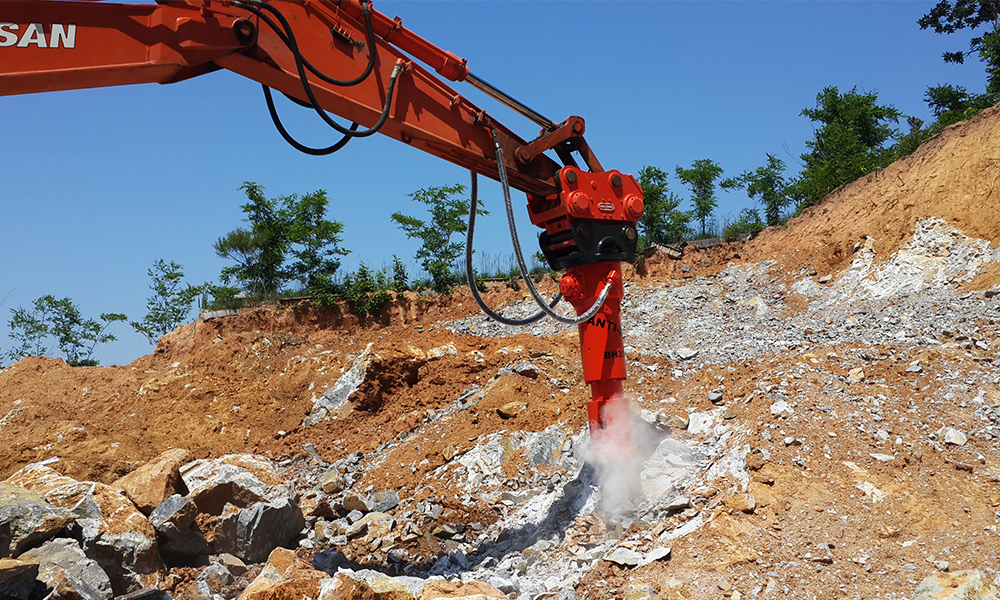

Jobsites
Specifications
BD series BD15 BD25 BD35 BD45 BD55
Excavator class ton 14-18 20-22 30-32 33-38 42-48
(H) Height mm 558 680 730 856 945
in 22 26.8 28.7 33.7 37.2
(L) Length mm 840 950 1030 1178 1360
in 33.1 37.4 40.6 46.4 53.5
(W) Width mm 523 618 676 760 766
in 20.6 24.3 26.6 29.9 30.2
(H1) Pin Height mm 405 495 520 610 680
in 15.9 19.5 20.5 24 26.8
(L1) Pin Distance mm 380 ~ 440 445 ~ 517 488 ~ 550 539 ~ 606 539 ~ 606
in 14.9 ~ 17.3 17.5 ~ 20.3 19.2 ~ 21.6 21.2 ~ 23.8 21.2 ~ 23.8
(L2) Mounting Distance mm 380 ~ 440 445 ~ 517 599 ~ 660 525 ~ 560 525 ~ 560
in 14.9 ~ 17.3 17.5 ~ 20.3 19.2 ~ 21.6 20.6 ~ 22 20.6 ~ 22
(W1) Mounting Width mm 251 ~ 220 305 ~ 340 375 ~ 430 430 ~ 472 450 ~ 472
in 9.8 ~ 11 12 ~ 13.4 14.7 ~ 17 17 ~ 18.5 17.7 ~ 18.5
(D) Pin Diameter mm 50 ~ 70 70 ~ 80 80 ~ 100 100 ~ 110 110 ~ 120
in 1.9 ~ 2.7 2.7 ~ 3.1 3.1 ~ 3.9 3.9 ~ 4.3 4.3 ~ 4.7
Weight kg 260 - 350 350 - 570 570 - 740 740 - 1000 1000 - 1100
lb 573 ~ 772 772 ~ 1257 1257 ~ 1630 1630 ~ 2205 2205 ~ 2425

The above specifications are subject to change without prior notice for quality enhancement.
