TILTING / AUGER VIBRO HAMMER
- MODELS
- DPD250TA, DPD350TA, DPD600TA
- EXCAVATOR WEIGHTS
- ≥ 18 ≤ 45 Ton
- OPTION
-
-

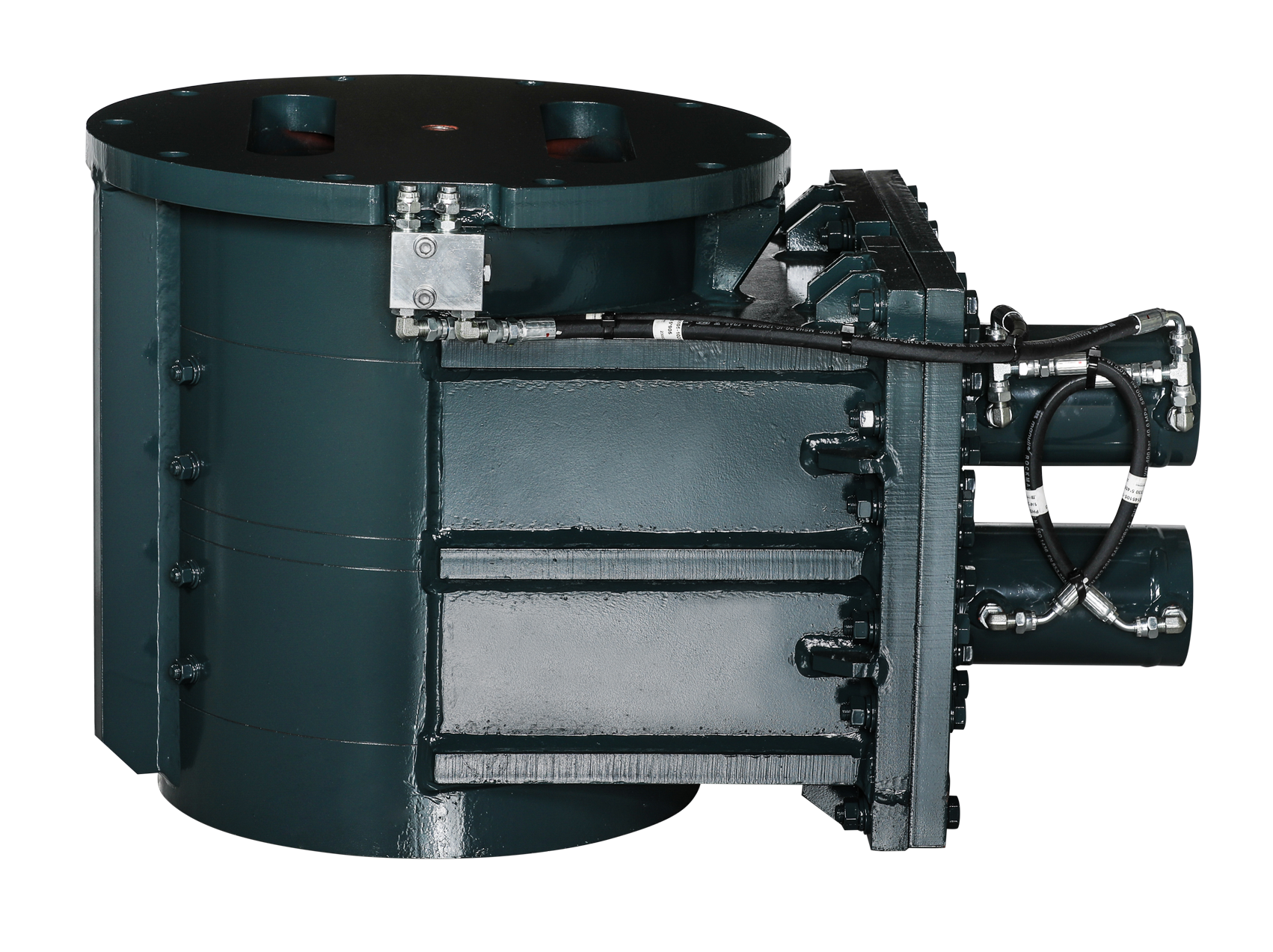

Single Tube Clamp (100-350mm)
-
Double Tube Clamp (350-650mm)
-
Features / Advantages
-
Multi-Functional
Patented AVH, Piling and Auger Drilling
-
90 Tilting Function
Controlled by a single operator
-
German Motor
Qualified vibratory power
-
Circulating Pump System
Extends lifetime of bearing
-
Cushion Elastomer
Patented cushion elastomer absorbs vibration and protects the excavator
- Efficient in hard soil : combination of drilling and piling with vibration
- Equivalent productivity with DTH Hammer
- Safety proven by using by safe control system
- 90 Tilting Function : piles can be easily arranged with no extra worker required.
Applications
Civil
Foundation
Road
Waterway
Railway
Utilities
Environment
Pier
Shore
Specifications
| DPD-TA series | DPD250TA | DPD350TA | DPD600TA | ||
|---|---|---|---|---|---|
| Excavator class | Ton | 18-22 | 28-35 | 36-45 | |
| Frequency | rpm | 2500 | 3000 | 3000 | |
| Hz | 42 | 50 | 50 | ||
| Centrifugal Force | lb/kN | 35969 / 160 | 67442 / 300 | 112000 / 500 | |
| Setting Oil Pressure | kg/cm2 | 250 | 250 | 250 | |
| Required Oil Flow | 1/min | 100-120 | 180 | 240 | |
| Auger Function | Output Torque | kg-m | 1500 | 2000 | 2000 |
| ft-lbs | 4774 | 14466 | 14466 | ||
| Rotate speed | rpm | 10~20 | 10~20 | 10~20 | |
| Oil Flow | l/mm | 32~64 | 54~110 | 54~110 | |
| Screw & Bit (option) | Φ | Max.250(Dia.) | Max.400(Dia.) | Max.450(Dia.) | |
| mm | Max.3000(L) | Max.6000(L) | Max.8000(L) | ||
| Power Pack (option) | kw | 37 | 52 | 52 | |
| hp | 50 | 70 | 70 | ||
| 1/min | 64 | 110 | 110 | ||
| kg/cm2 | 240 | 240 | 240 | ||

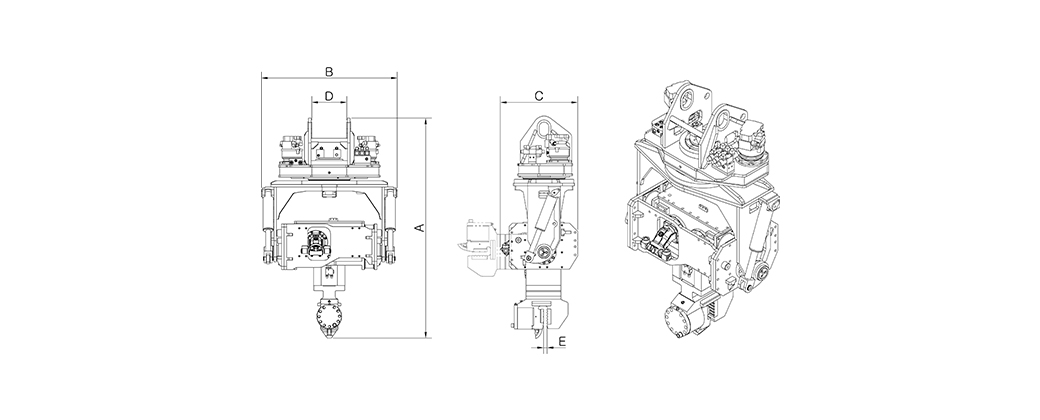

| (A) Hight | mm/in | 1950 |
2100 |
2180 |
|
in | 76.8 | 85.8 | 85.8 | ||
| (B) Length | mm |
1185 |
1320 |
1363 |
|
in | 46.7 | 52 | 53.7 | ||
| (C) Width | mm |
690 |
762 |
762 |
|
in | 27.2 | 30 | 30 | ||
| (D) Upper Pin | mm |
345 |
345 |
345 |
|
in | 13.5 | 13.5 | 13.5 | ||
| (E) Clamping Jaw | mm |
32 |
40 |
40 |
|
| in | 1.2 | 1.6 | 1.6 | ||
| Rotation/Tilt Angle | degree | 360 / 90 | 360 / 90 | 360 / 90 | |
| Main Body | kg |
1390 |
2180 |
2380 |
|
lb | 3064 | 4806 | 5247 | ||
| Extension Boom | kg |
- | 770 |
860 |
|
lb | - | 1694 | 1892 | ||
Power-pack is required for using auger drill and vibration at the same time.
The above specifications are subject to change without prior notice for quality enhancement.
