[Patented]

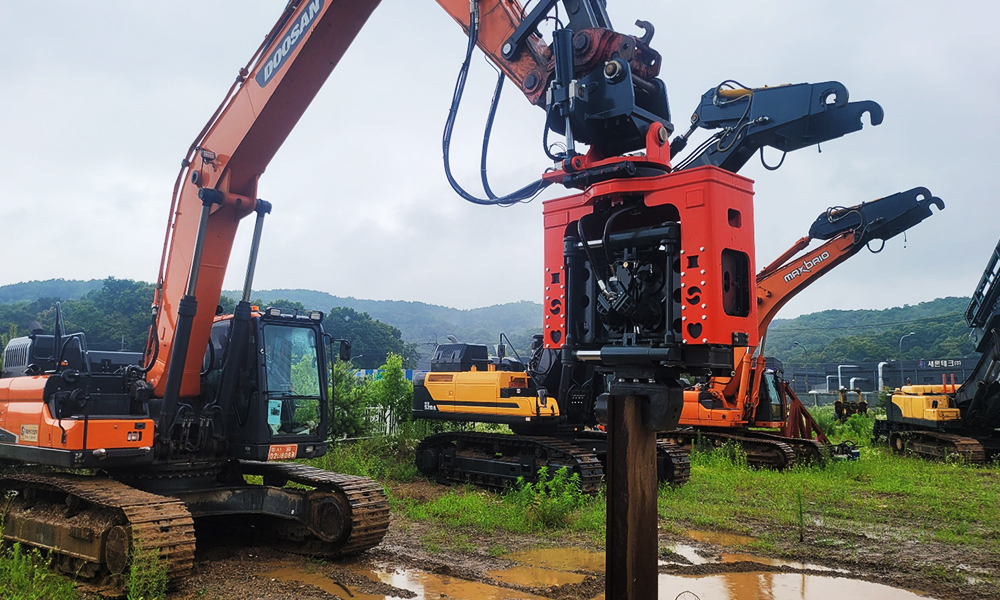

SIDE VIBRO HAMMER
World Patented Product : Vertical Vibro Guide
Applicable range from 22 to 45 ton class excavator
- MODELS

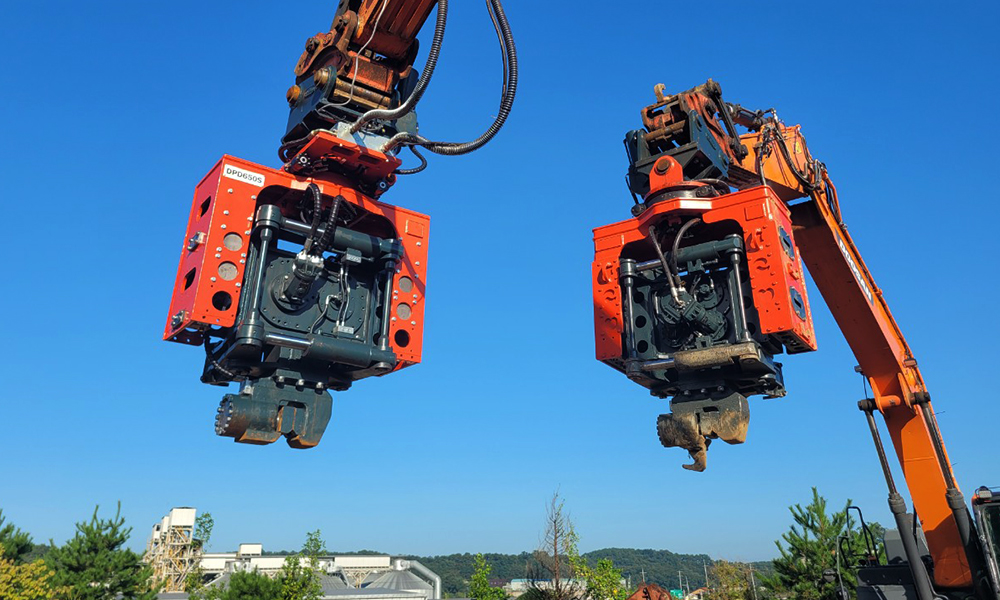

- DPD450S, DPD650S
- EXCAVATOR WEIGHTS
- ≥ 22 ≤ 45 Ton
- OPTION
-
-
Side Clamp (100-520mm)
-
-
4 Eccentric Shafts
provides powerful low-frequency vibration and lessens stress to the machine
-
Forced Circulating Pump
solve the heat generated in the gearbox during the operation
-
Vertical Vibro Guide (Patented)
precise and steady vertical movement during the entire operation
-
Cushion Elastomer
quality guaranteed through self-produced injection machine

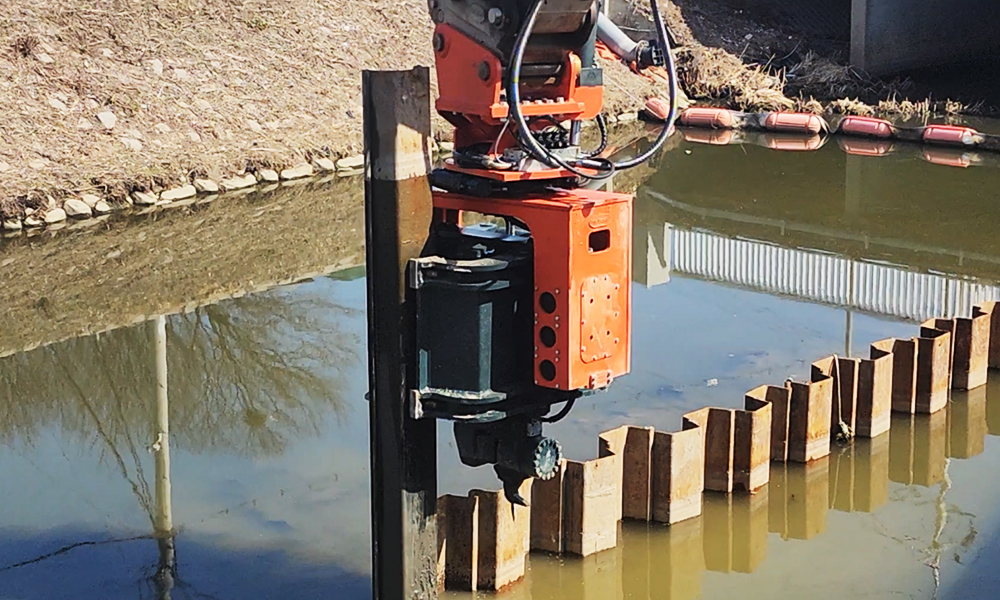

- Designed to drive and extract all types of piles
(sheet pile, trench sheet, H-beam, tubular steel pile, timber pile) - Gear oil supplied to the bearings prevents heat generated during the operation
- Maximum power of precision during the pile driving process
- Optimum solution for sites with limited access or space
(low overhead clearance, narrow passageways, headroom)
Applications
Civil
Foundation
Road
Waterway
Railway
Utilities
Environment
Pier
Shore
Specifications
DPD-S series | DPD450S | DPD650S | |
|---|---|---|---|
| Excavator class | Ton | 22-28 | 30-45 |
| Frequency | rpm | 2800 | 2600 |
| Hz | 46.6 | 43.3 | |
| Setting Oil Pressure | kg/cm2 | 250 | 250 |
| Required Oil Flow | 1/min | 180 | 180 |
| Centrifugal Force | lb/kN | 101164 / 450 | 128141 / 570 |
Eccentrics | ea | 2 | 4 |
| (A) Height | mm | 2634 | 2851 |
| in | 103 | 112 | |
| (B) Length | mm | 1543 | 1581 |
| in | 60 | 62 | |
| (C) Width | mm | 1436 | 1510 |
| in | 56 | 59 | |
(D) Clamping Jaw | mm | 225 | 295 |
| in | 9 | 11 | |
| (E) Clamping Jaw | mm | 32 | 40 |
| in | 1 | 1 | |
Rotation | degree | 360 | 360 |
| Extension boom | kg | 2710 | 3790 |
| lb | 5974 | 8338 | |
The above specifications are subject to change without prior notice for quality enhancement.
