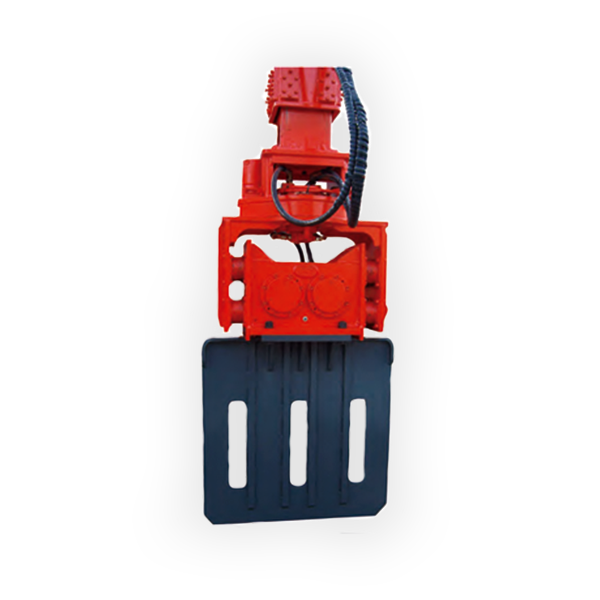

VIBRO PLATE
Applicable range from 14 to 22 ton class excavator
- MODELS
- DVP1300
- EXCAVATOR WEIGHTS
- ≥ 14 ≤ 22 Ton
Features / Advantages
-
For RCD dam construction project
-
Hardox plate wear resistance
-
All-in-one block oil flow control valve that rotates 360 degrees
Applications
Foundation
Road
Utilities
Environment
Downtown areas
Landscaping

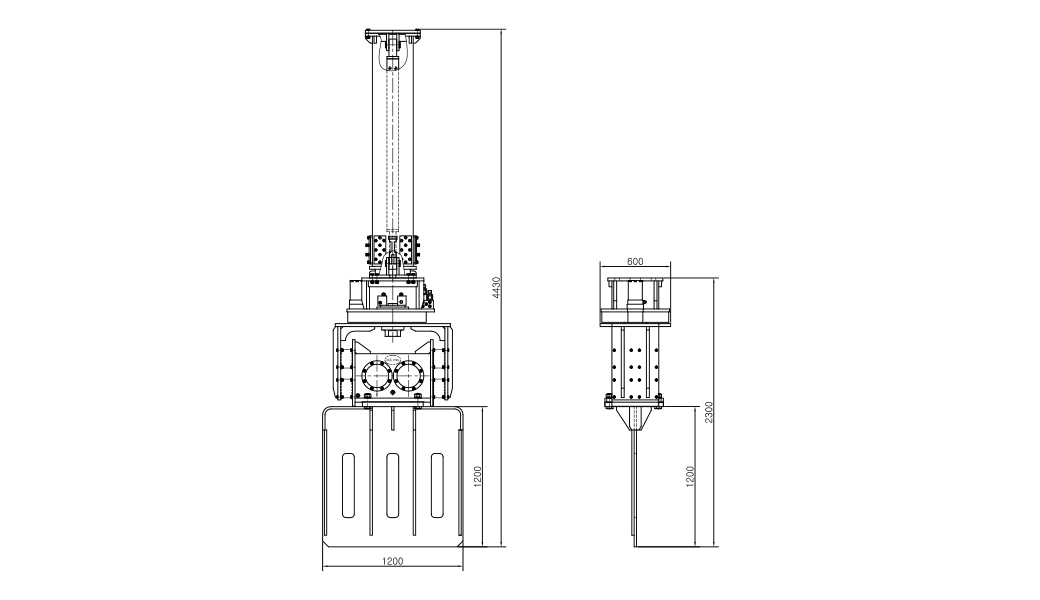

Specifications
DVP series |
DPD1300 | |
|---|---|---|
Excavator class |
ton | 14-22 |
Frequency |
rpm | 2800-3000 |
| Hz | 46-50 | |
Working Pressure |
kg/cm2 | 220 |
Oil Quantity |
1/min | 110-120 |
Turning Angle |
degree | 360 |
Lifting from up to down |
mm | 1200 |
Overall Width |
mm | 1200 |
Overall Length |
mm | 600 |
Overall Height |
mm | 4430 |
Weight of Main Body |
kg | 1270 |
Weight of Cutting Body |
kg | 330 |
The above specifications are subject to change without prior notice.
