[Patented]

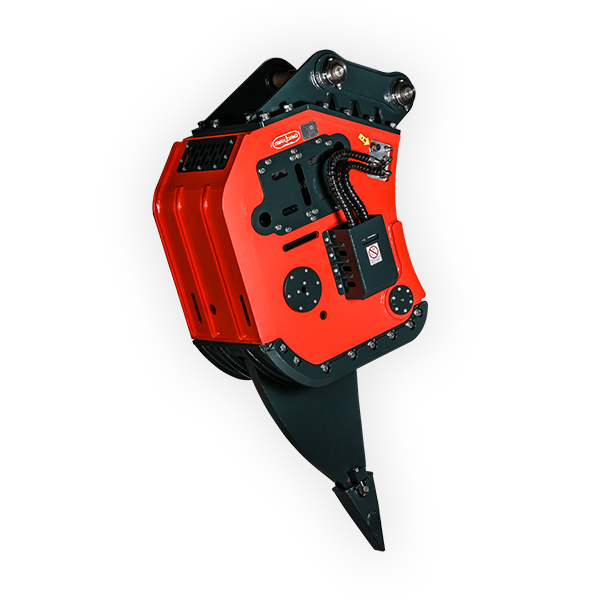

MAXBRIO RIPPER

World Patented Product : Brio link and Anti-shock mechanism
BR Series
Applicable range from 12 to 80 ton class excavator

MODELS
BR15, BR25, BR35, BR40, BR45, BR55, BR65P, BR75P, BR85P
EXCAVATOR WEIGHTS
≥ 12 ≤ 80 Ton
Request a quote
Features / Advantages
  • Posten Steel

    made by POSCO Korea. Completely made of hard facing steel

  • Hardox Hituf

    Swedish steel

  • Patented Anti-Shock system

    cushion elastomer

  • German Motor

    qualified vibratory power

  • Brio Link System

    optimized structure for ripping and vibrating at the same time
    World patented product

  • Special Manganese Tooth

    maximized durability

  • Mass Productivity: 3~5 times more efficient and productive than the breaker
  • Best productivity in fractured rock sites
  • Patented Cushion Elastomer: specially designed to protect the excavator from vibration and stress
  • Noiseless in downtown areas: eco-friendly and noiseless demolition equipment
  • Alternative for blasting: for environmental and safety issues, blasting is restricted mining sites
Applications

  • Demolitions

  • Roadworks

  • Quarries

  • Mining

  • Tunnel

  • Trenching

  • Downtown areas

  • Excavation

  • Landscaping

  • Forestry

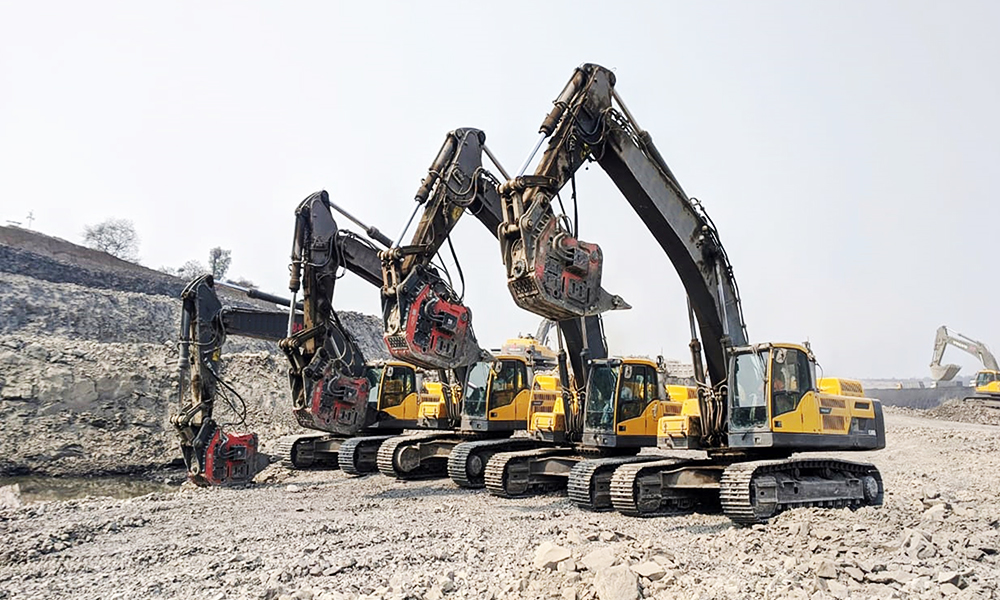

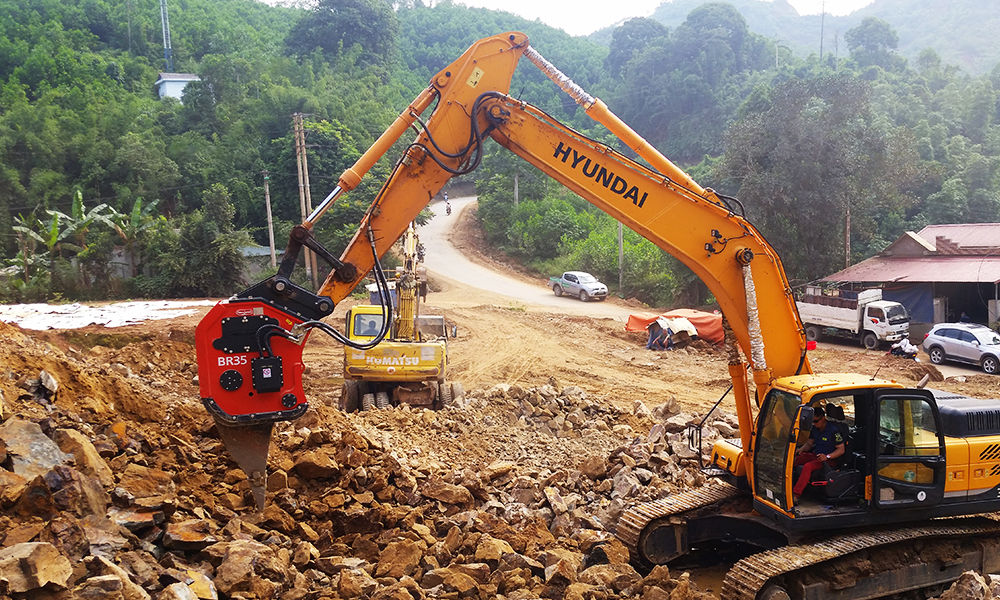

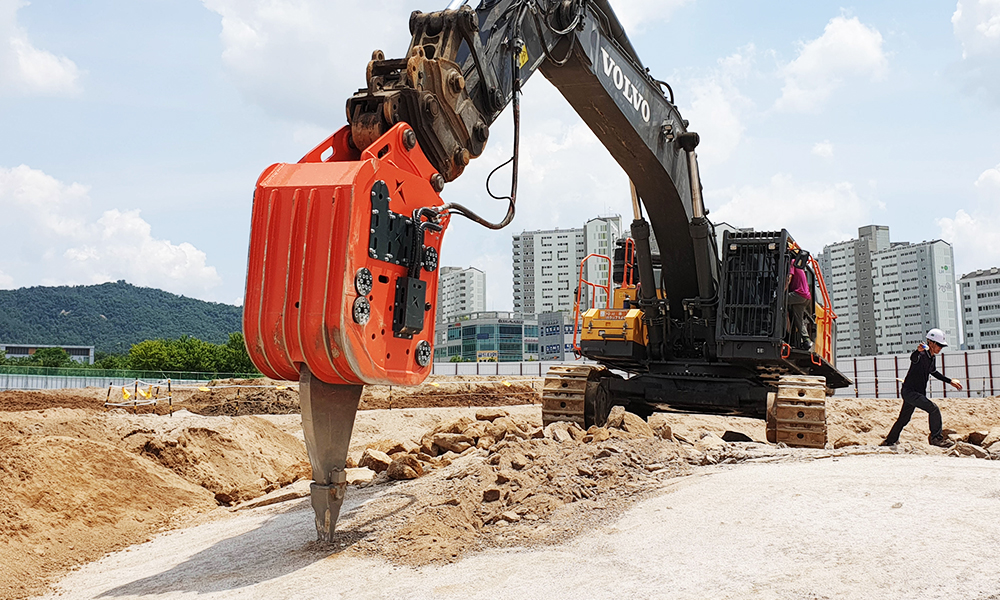

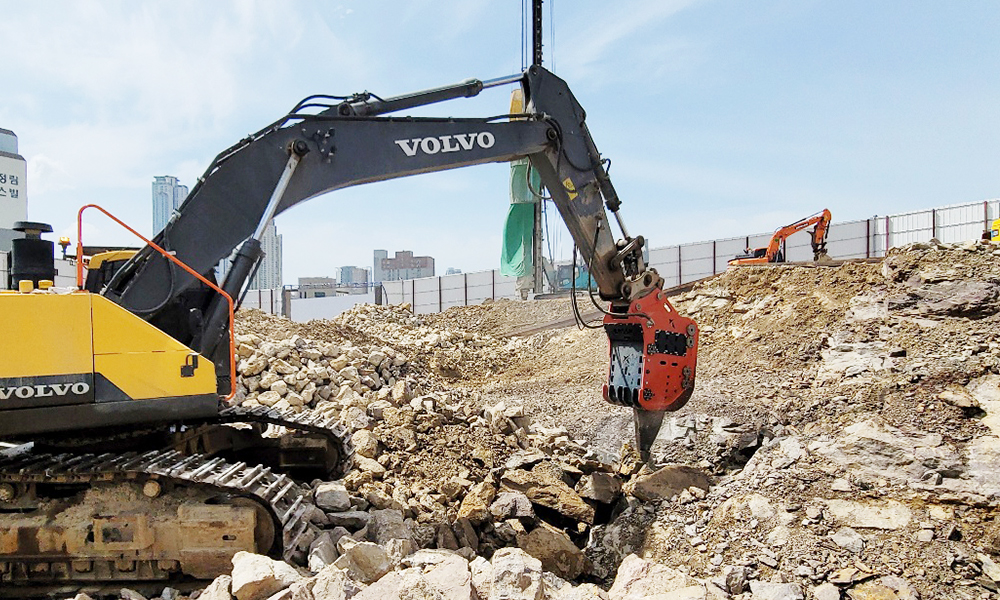

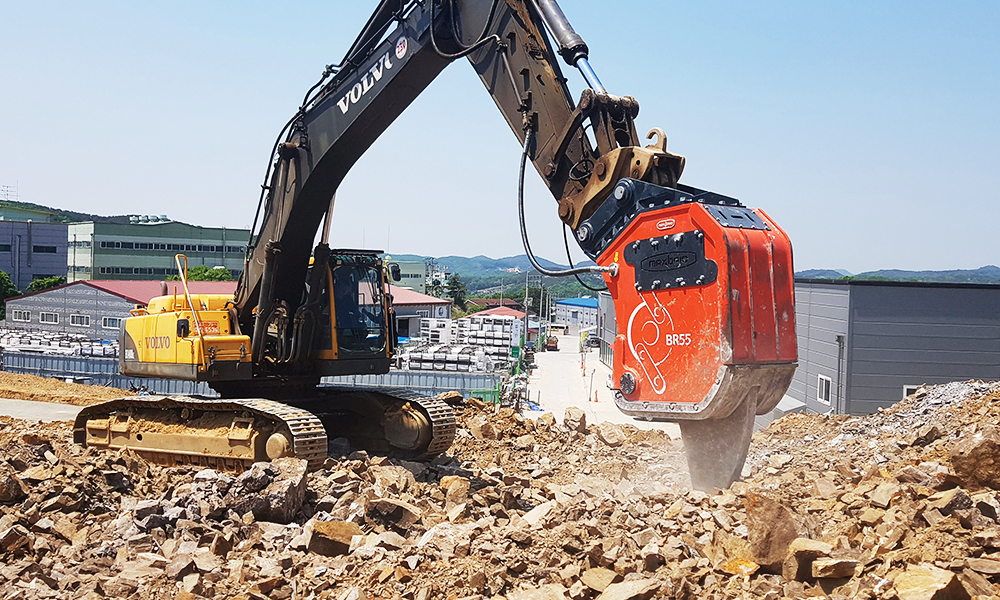

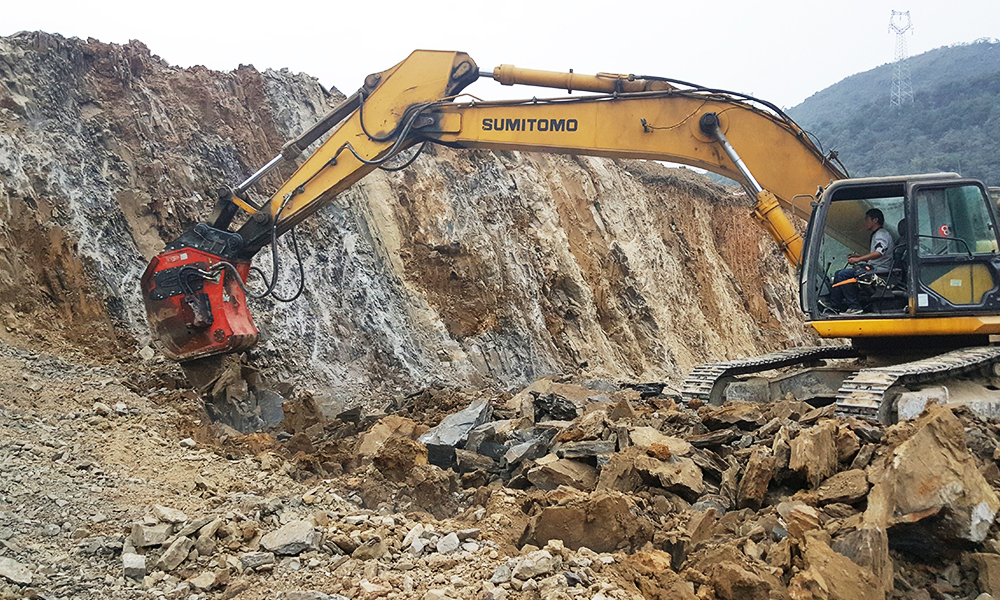

Jobsites
Video
Specifications
BR Series BR15 BR25 BR35 BR40 BR45 BR55 BR65P BR75P BR85P
Excavator class Ton 12-18 20-25 26-30 32-35 37-42 42-52 52-60 55-65 65-80
Frequency rpm 1700 1700 1700 1800 1700 1700 1200 1200 1200
Hz 28.3 28.3 28.3 30 28.3 28.3 20 20 20
Setting Oil Pressure kg/cm2 250 250 250 250 250 250 250 250 250
Required Oil Flow 1/min 100-120 120-140 180-200 180-210 260-270 290-300 240-260 300-320 300-320

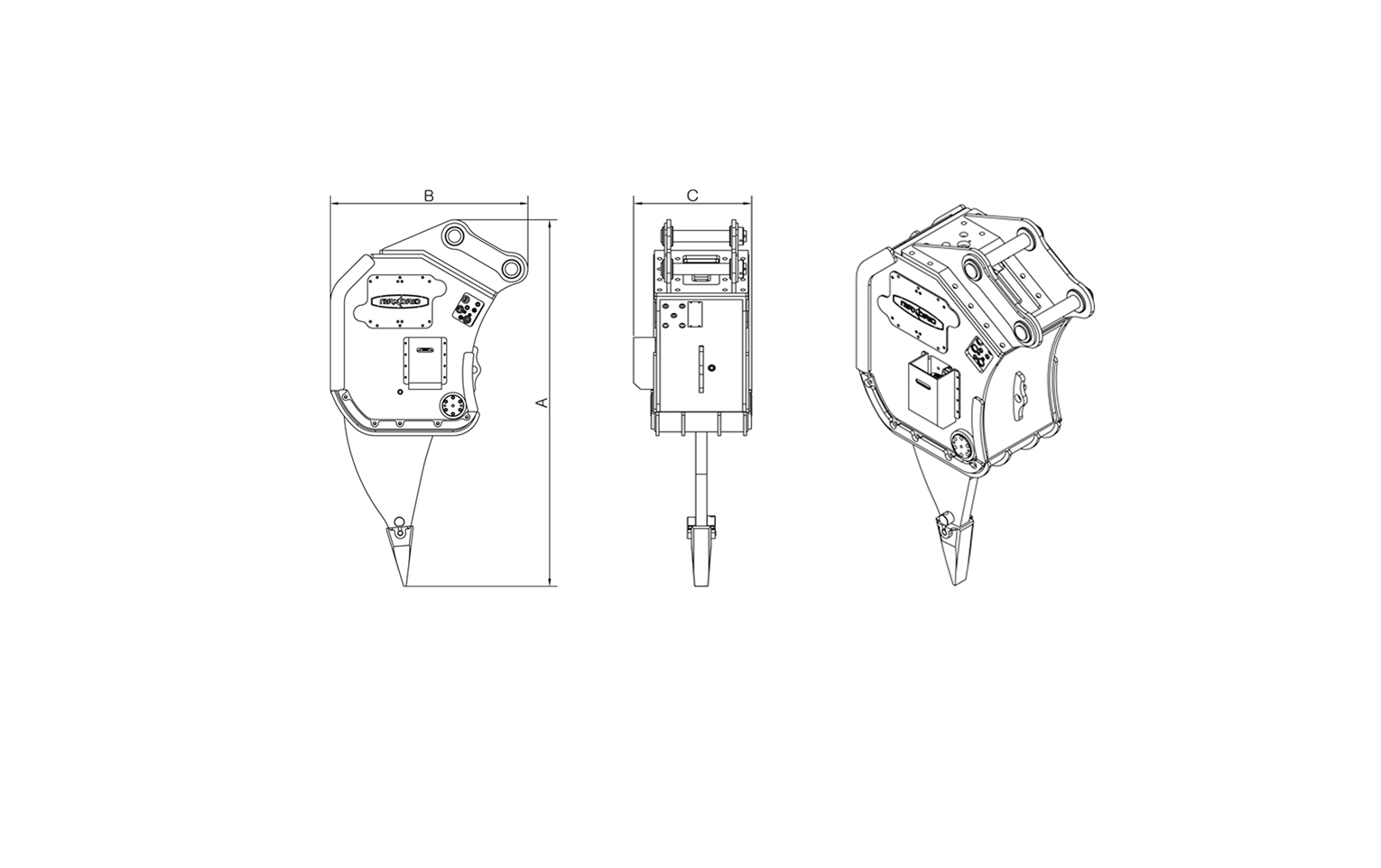

(A) Height mm 1985 2740 2900 2920 3253 3360 3250 3390 3640
in 78.1 107.9 114.2 115 128 132 128 133.5 143.3
(B) Length mm 1200 1420 1564 1584 1710 1782 1650 1667 1804
in 47.2 55.9 61.6 62.4 67.3 70.2 65 65.6 71
(C) Width mm 760 806 855 855 913 928 1057 1105 1154
in 29.9 31.7 33.7 33.7 35.9 36.5 41.6 43.5 45.4
(D) Tooth mm 265 470 470 470 470 575 575 575 575
in 10.4 18.5 18.5 18.5 18.5 22.6 22.6 22.6 22.6
Weight (Inc. bracket) kg 1460 2520 3310 3390 4690 5470 5720 7050 8490
lb 3219 5556 7297 7474 10340 12059 12610 15542 18716

The above specifications are subject to change without prior notice for quality enhancement.
